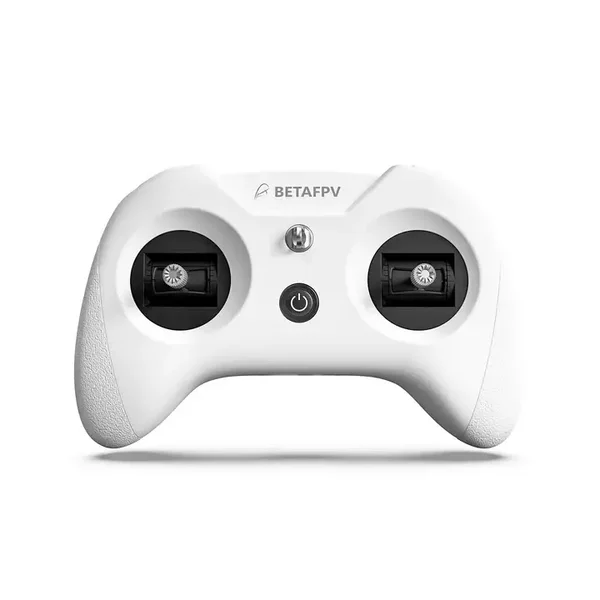

BetaFPV LiteRadio 3 ELRS Transmitter

LiteRadio 3 Radio Transmitter is the newest remote control in the LiteRadio series. This transmitter features an ergonomically designed handle and has superb performance in its working time, newly updated gimbal, and multi-protocol support (Frsky version). Besides, this version supports BETAFPV Configurator which is a utility designed to simply update, configure, and tune the radio controller.

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.
• USB Joystick support for most practice simulators.
• Nano module bay for external TX module.

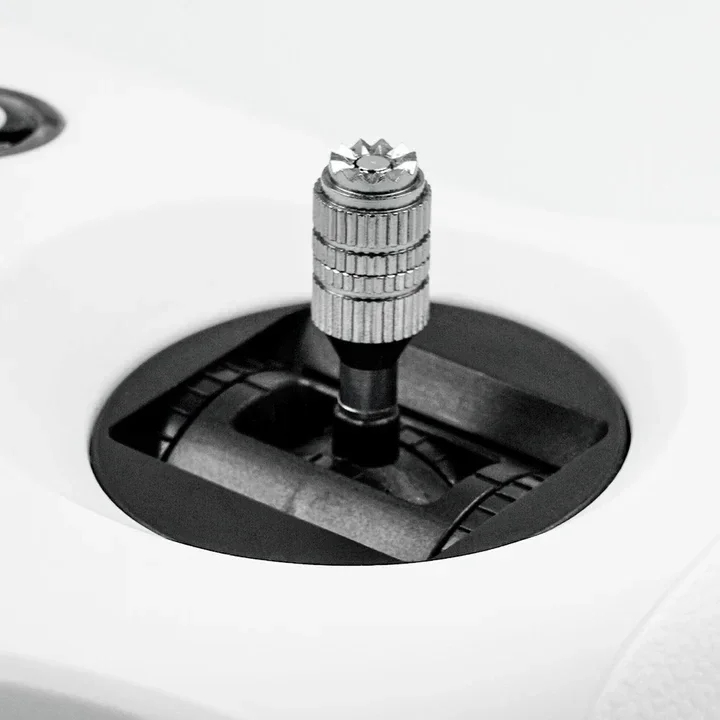

• Newly designed joystick gimbal for longer usage life.
• Support BETAFPV Configurator for updating, configuring, and tuning.
• Provide ExpressLRS 2.4G protocol version and Frsky protocol version for option.
• Built-in 2000mAh battery and USB charge supported.

Bullet Points

• Equipped with a built-in 2000 mAh 1S battery, LiteRadio 3 can work up to 15 hours without an external module, bringing an excellent endurance performance.
• Comes with a built-in charging module, LiteRadio 3 supports USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. It indicates a low battery and needs to be re-charged if the blue light flashes slowly and the buzzer beeps continuously.
• LiteRadio 3 supports popular FPV simulators like VelociDrone, Liftoff, TRYP, DRL, DCL, DJI, etc. Compatible with desktops, Android devices, and tablets, it also features Xbox mode for seamless integration with the DJI Flight Simulator on Windows system.
• Newly designed with a nano bay, it supports the external TX module. Highly recommend BETAFPV ELRS Nano Module, which is compatible with the LiteRadio 3 radio transmitter and makes CRSF protocol available.

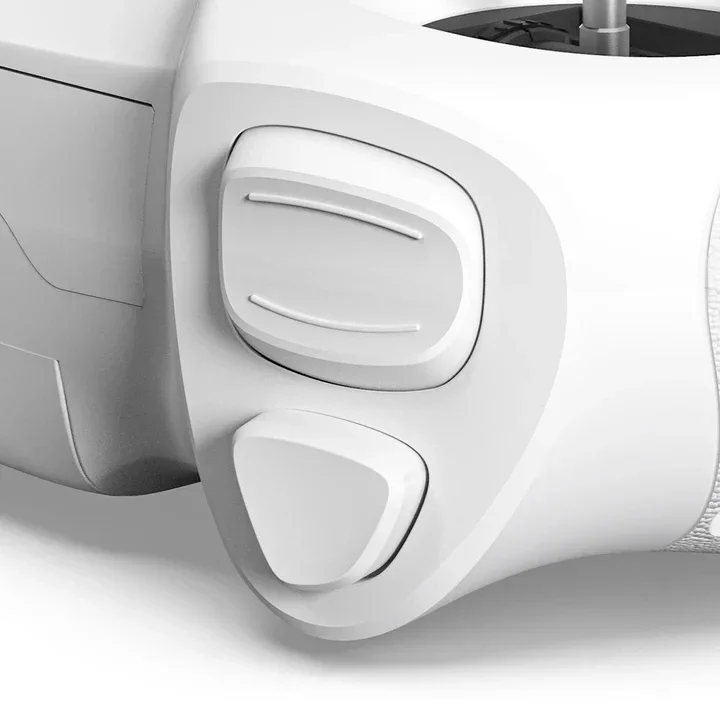

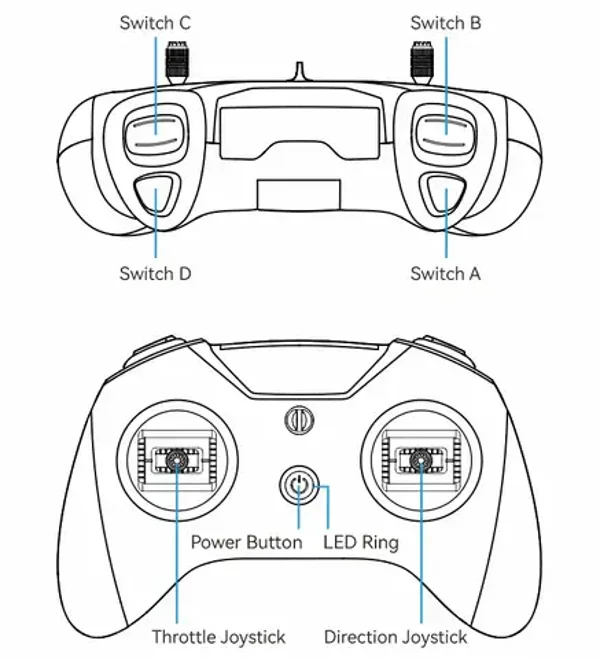

• Adopted the rubber coat, LiteRadio 3 is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
• It is the safest and quickest method to get started by using a model practice simulator for starters. LiteRadio 3 radio transmitter supports most of the simulators on market with comprehensive configuration.

Specifications

• Item: LiteRadio 3 Radio Transmitter
• Frequency Range: 2.4G
• 2.4G System: CC2500/SX1280
• Channel: 8
• Support Protocol: Futaba S-FHSS/Frsky FCC D16/Frsky LBT D16/Frsky D8, ExpressLRS 2.4G
• Power: ELRS version 25mW/50mW/100mW, Frsky version 100mW
• Adapted Drone Type: Multirotor, Airplane
• Support USB Charging / Firmware Update
• Support BETAFPV Configurator / Most Practice Simulator
• LED Light: Red-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal
• Battery: Built-in 2000mAh 1S Battery
• Charging Connector: USB 3.0 Type-C
• Recommend External TX Module: ELRS Nano TX Module
• Recommend Accessories: Nano Gimbal for LiteRadio 3, Storage Case, Transmitter Neck Strap

External TX Module

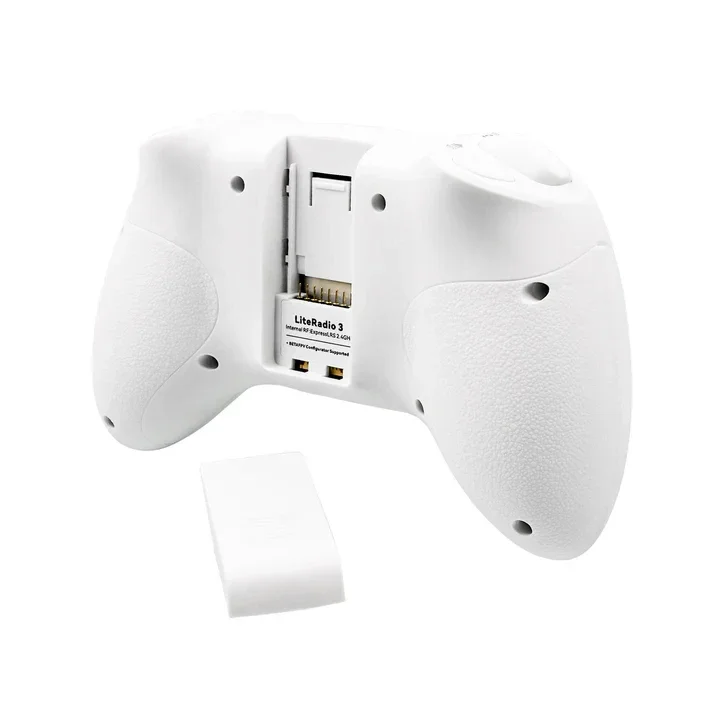

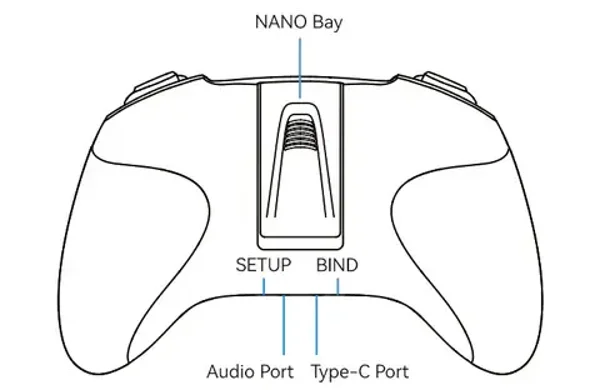

Reserving a nano bay on the backside, LiteRadio 3 supports an external module. BETAFPV ELRS Nano TX Module, which features a high refresh rate, ultra-low latency, and long-range, is strongly recommended to LiteRadio 3.

Note: The external modules should support the CRSF protocol when using other brands. If you are ready to install the TBS external nano module, the TBS nano module case size should be 64*42*25mm, the thicker one of the retrofit cases.

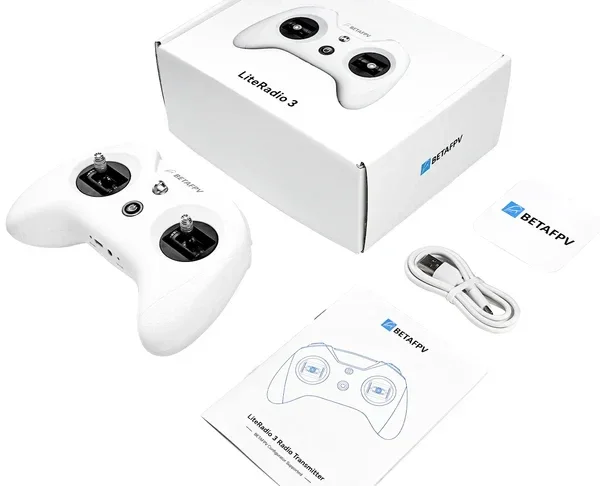

Package

• 1 * LiteRadio 3 Radio Transmitter
• 1 * User Manual
• 1 * USB Type-C Cable
