DakeFPV - Mini ESC

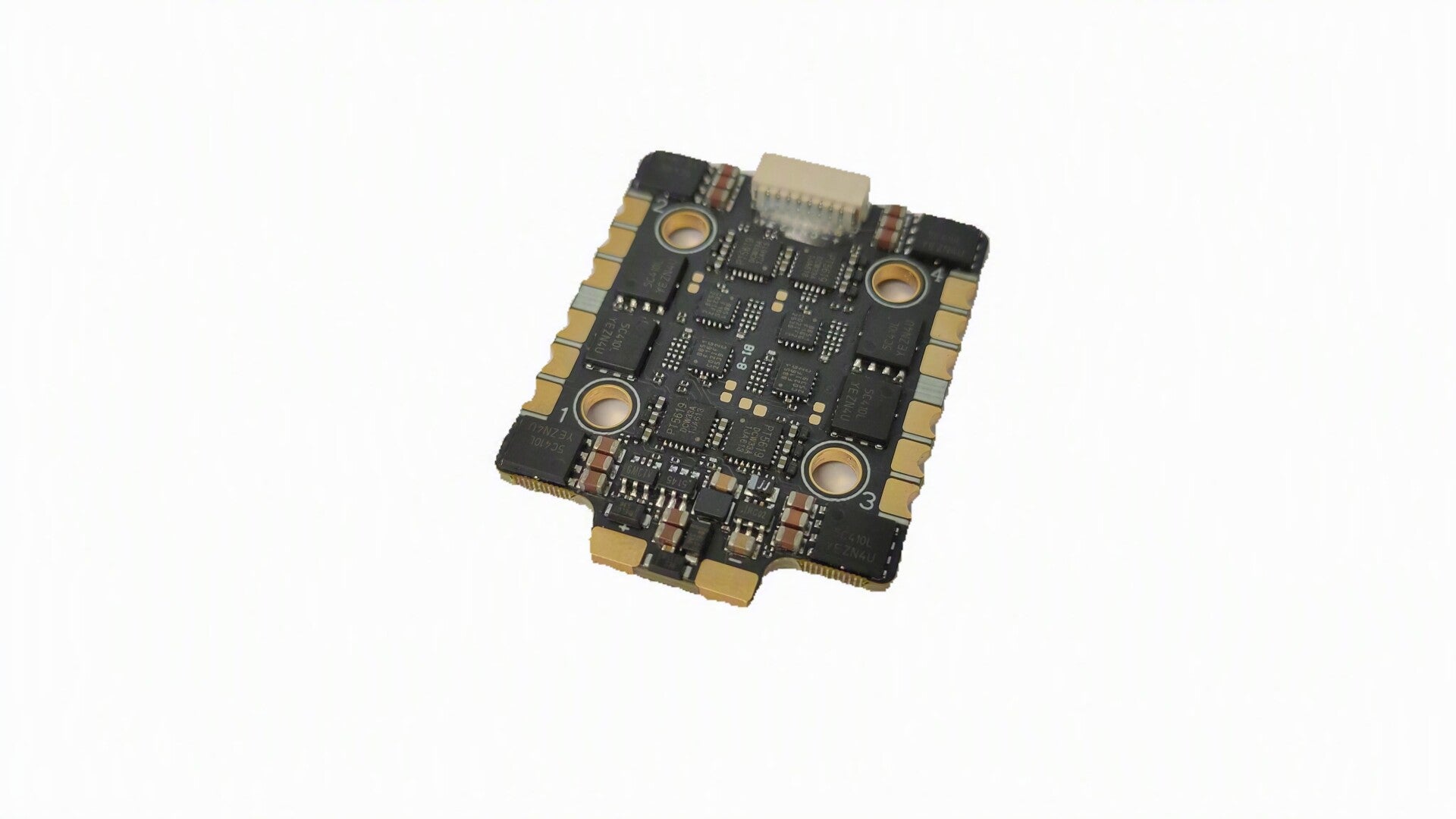

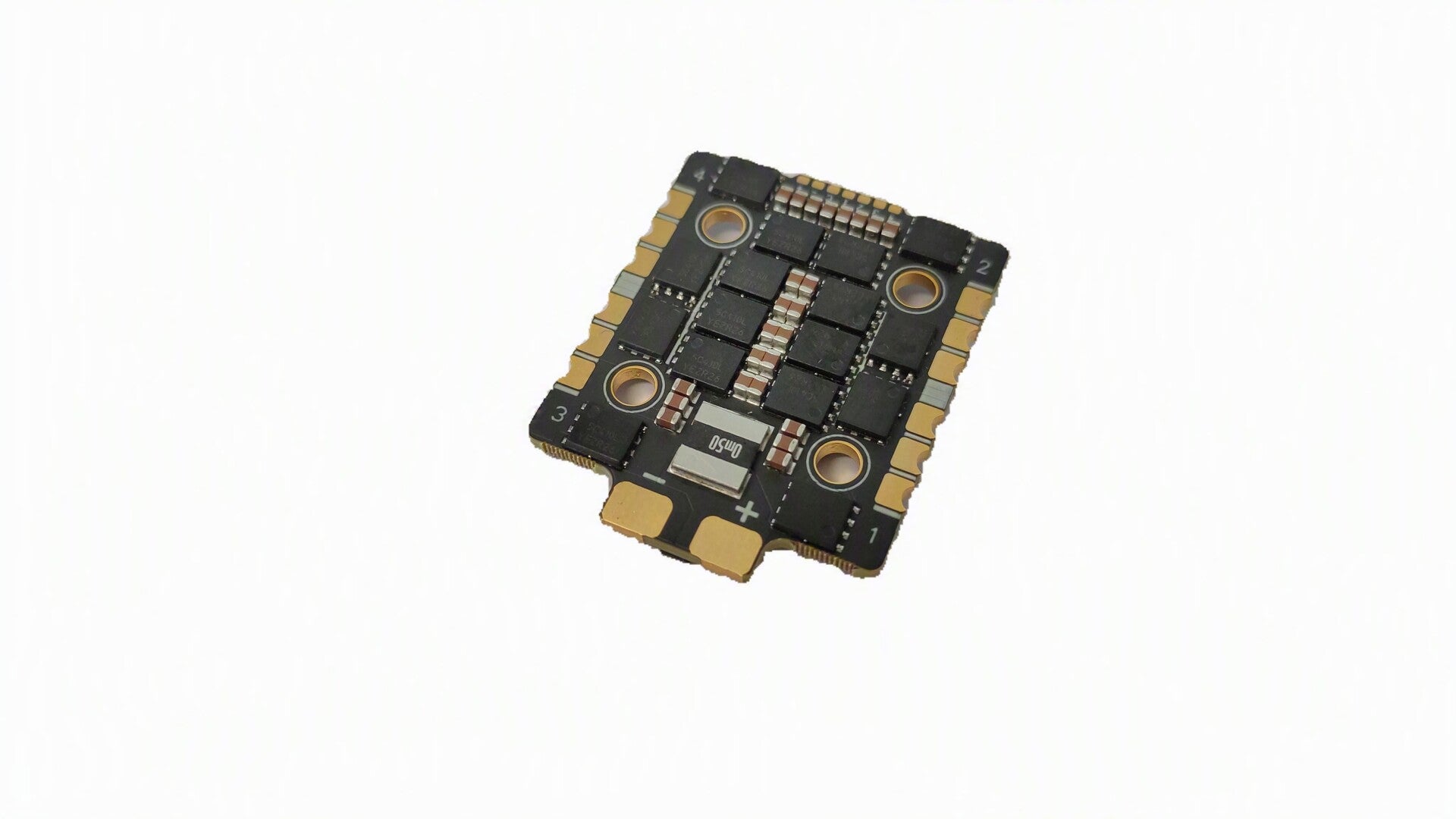

ESC – Mini 55/60/70A 4-in-1 ESC

• ESC Firmware: BLHeli_S / Bluejay
• Firmware Version: B_X_30_24_v0.19.2
• MCU: EFM8BB51F16-C-QFN20
• MOSFET: 5C430
• Continuous Current: 55/60/70A × 4
• Input Voltage: 3–6S LiPo
• Capacitor: 35V 1000µF Low ESR
• ESC Protocols:
  PWM, DShot300, DShot600, Bi-directional DShot
• Current Sensor: Supported (Up to 120A)
• Power Output: VBAT
• Board Size: 34 × 42 × 6.5 mm
• Weight: 12 g
• Mounting Pattern: 20 × 20 mm
• Operating Temperature: 20°C – 70°C
• Working Humidity: 20% – 95%

Works with:

• F405 mini
• F722 mini
